WH-8812DAI Tensile Testing Equipment With AC Variable Frequency Motor

WH-8812DAI Tensile Testing Equipment With AC Variable Frequency Motor​

1, the induction method: high-precision load cell (sensor)

2, capacity selection: 50/100/200 / 500kg

3, unit switching: kgf, N, Lbf

4, effective measurement range (%): Degree of accuracy: within ± 1% of the value of the

indication

5, the test stroke: 1000mm (without fixture)

6, the speed range: 25 ~ 500mm / min

7 the speed input mode: knob

8,the safety device: limit protection (1), the display: LCD display: test value / maximum value /

rupture value

9,overload protection: more than 10% of the maximum load automatic protection of the

machine

10, power system: AC AC variable frequency motor

11, fixture configuration: according to user requirements for a fixture

12, power: AC: 220V ± 10%, 50HZ 5A

13 , Volume: 56X32X180cm

14, Weight: about 100kg

tensile strength testing machine

tensile strength test equipment

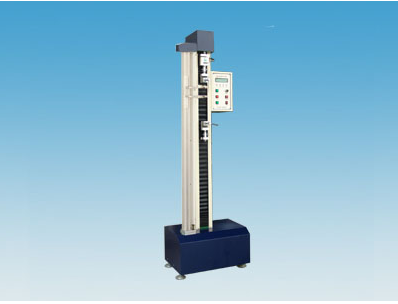

WH-8812DAI Tensile Testing Equipment With AC Variable Frequency Motor Images
