Name: Auto Wire Flame Test Equipment Vertical Flammability Tester PLC Control
Brand: Kinte
Price: 1 USD

Brand Name : Kinte

Model Number : WH-8820A

Certification : Certificate of conformity of quality management system certification

Place of Origin : Guangdong,China (Mainland)

MOQ : 1set

Price : customized

Supply Ability : customized

Delivery Time : customized

Packaging Details : customized

Contact Now

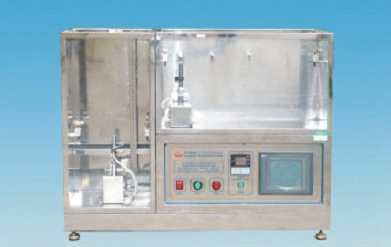

Auto Wire Flame Test Equipment Vertical Flammability Tester PLC Control

product manual

Test standards: in accordance with UL62-3839, UL1581-1060-1080,1100,1140 standard

production, testing the flame retardant wire. Instrument consists of: control box, vertical

combustion box, horizontal combustion chamber, combustion lamp, solenoid valve, high pressure

igniter, gas pipe, pressure regulating valve, and signal control line.

The main parameters:

1, the vertical combustion chamber and the horizontal combustion chamber: box size

305x355x610mm

2, vertical combustion nozzle and horizontal combustion nozzle: the nozzle angle is 20 degrees,

with gas control valve.

3, stop mode: the preset data, the machine will automatically stop the test.

4, an increase of high-precision flame retardant control system and temperature measurement

system

5, intelligent touch screen + PLC control

Auto Wire Flame Test Equipment Vertical Flammability Tester PLC Control
